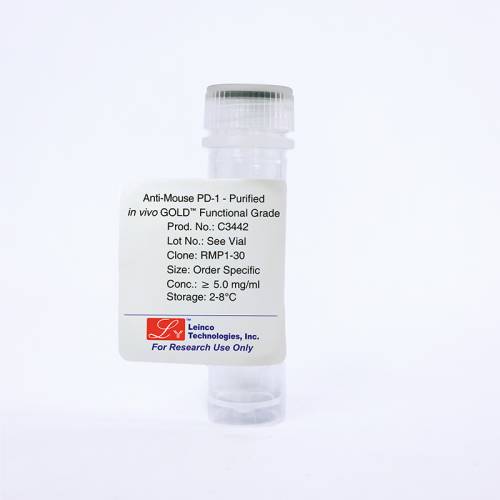

Anti-Mouse PD-1 [Clone RMP1-30] — Purified in vivo GOLD™ Functional Grade

Anti-Mouse PD-1 [Clone RMP1-30] — Purified in vivo GOLD™ Functional Grade

Product No.: C3442

- -
- -
Clone
RMP1-30
Target
PD-1
Formats AvailableView All
Product Type
Monoclonal Antibody
Alternate Names
Programmed Death-1, CD279
Isotype
Rat IgG2b κ
Applications
Depletion
,
FC
,
in vivo

- -
- -
Select Product Size
- -
- -

Antibody Details

Product Details

Reactive Species
Mouse
Host Species
Rat
Recommended Isotype Controls
Recommended Dilution Buffer
Immunogen
Mouse PD-1 transfected BHK cells
Product Concentration
≥ 5.0 mg/ml
Endotoxin Level
<1.0 EU/µg as determined by the LAL method
Purity
≥95% monomer by analytical SEC
>95% by SDS Page
Formulation
This monoclonal antibody is aseptically packaged and formulated in 0.01 M phosphate buffered saline (150 mM NaCl) PBS pH 7.2 - 7.4 with no carrier protein, potassium, calcium or preservatives added. Due to inherent biochemical properties of antibodies, certain products may be prone to precipitation over time. Precipitation may be removed by aseptic centrifugation and/or filtration.
Product Preparation
Functional grade preclinical antibodies are manufactured in an animal free facility using in vitro cell culture techniques and are purified by a multi-step process including the use of protein A or G to assure extremely low levels of endotoxins, leachable protein A or aggregates.
Storage and Handling
Functional grade preclinical antibodies may be stored sterile as received at 2-8°C for up to one month. For longer term storage, aseptically aliquot in working volumes without diluting and store at ≤ -70°C. Avoid Repeated Freeze Thaw Cycles.
Country of Origin
USA
Shipping
Next Day 2-8°C
Applications and Recommended Usage?
Quality Tested by Leinco
FC
IHC FF
Additional Applications Reported In Literature ?
FC
Depletion
Each investigator should determine their own optimal working dilution for specific applications. See directions on lot specific datasheets, as information may periodically change.

Description

Description

Specificity
RMP1-30 activity is directed against mouse PD-1 (CD279).
Background
PD-1, a member of the CD28/CTLA-4 subfamily of the Ig superfamily, is a transmembrane protein expressed on activated T cells, B cells, a subset of thymocytes, macrophages, dendritic cells, and some tumor cells1,2. PD-1 is also retained in the intracellular compartments of human and mouse regulatory T cells (Tregs) and is co-expressed with CD25 on activated CD4+ T cells3. When stimulated via the T cell receptor (TCR), Tregs translocate PD-1 to the cell surface3. PD-1 is absent on naïve T cells and is inducibly expressed on T cells by T cell antigen receptor (TCR). B7-H1 (PD-L1; CD274) and B7-DC (PD-L2; CD273) have been identified as PD-1 ligands1. PD-1 is co-expressed with PD-L1 on tumor cells and tumor-infiltrating antigen-presenting cells (APCs)2.

PD-1 acts as a T cell inhibitory receptor and plays a critical role in peripheral tolerance induction and autoimmune disease prevention as well as important roles in the survival of dendritic cells, macrophage phagocytosis, and tumor cell glycolysis2. PD-1 prevents uncontrolled T cell activity, leading to attenuation of T cell proliferation, cytokine production, and cytolytic activities. Additionally, the PD-1 pathway, consisting of PD-1 on T cells and PD-L1 on APCs, is a major mechanism of tumor immune evasion, and, as such, PD-1 is a target of cancer immunotherapy2.

RMP1-30 does not block the binding of B7-H1 or B7-DC to PD-11. However, recent studies show that RMP1-30 does deplete PD-1 expressing cells 28.
Antigen Distribution
PD-1 is expressed on activated T cells, B cells, a subset of thymocytes, macrophages, dendritic cells, and some tumor cells.
NCBI Gene Bank ID
Research Area
Immunology

Leinco Antibody Advisor

Powered by AI: AI is experimental and still learning how to provide the best assistance. It may occasionally generate incorrect or incomplete responses. Please do not rely solely on its recommendations when making purchasing decisions or designing experiments.

Clone RMP1-30 is a rat monoclonal antibody against mouse PD-1 (CD279) that is routinely used in in vivo mouse studies primarily for the detection and characterization of PD-1 expression by flow cytometry and immunophenotyping, but not for functional blocking of PD-1 signaling in live animals.

Key uses and details in in vivo mouse studies:

  • Detection of PD-1 expression: RMP1-30 is used to identify and quantify PD-1 (CD279) on the surface of mouse T cells, B cells, and certain tumor cells via flow cytometry. It is effective for distinguishing PD-1+ versus PD-1– populations in mouse tissues and tumors. For example, RMP1-30 showed specific binding to PD-1 on both T cells and B16-F10 melanoma cells and is used to sort and analyze these cells.
  • Assessment of PD-1 specificity: RMP1-30 is routinely validated for specificity by demonstrating no reactivity in PD-1 knockout mice, confirming that any signal is due to PD-1 recognition.
  • Combination with other anti-PD-1 antibodies: Studies may use RMP1-30 alongside other anti-PD-1 clones (such as 29F.1A12) to corroborate findings, as these clones recognize overlapping populations of PD-1+ cells. This is important for validating staining specificity and reproducibility.

Crucially:

  • RMP1-30 is not used for PD-1 blockade in vivo: While some anti-PD-1 clones (e.g., 29F.1A12 or RMP1-14) are used therapeutically to block PD-1 signaling in mouse models of cancer or autoimmune disease, RMP1-30 does not block ligand (PD-L1/PD-L2) binding to PD-1 and is therefore not suitable for PD-1 functional blocking studies in vivo. Its function is limited to detection and phenotyping.
  • Immunogen and isotype: RMP1-30 was raised by immunizing rats with PD-1–transfected BHK cells and is an IgG2b isotype.

Limitations:

  • Since RMP1-30 does not block the binding of PD-1 ligands, it cannot substitute for blocking antibodies in studies requiring PD-1/PD-L1 or PD-1/PD-L2 pathway inhibition.
  • For in vivo studies where PD-1 function needs to be manipulated, blocking clones like 29F.1A12 or 4C11 (engineered for reduced immunogenicity and effector function) are preferred.

In summary, RMP1-30 is used in mouse studies to detect and quantify PD-1 in immunophenotyping and flow cytometry, but is not appropriate for functional PD-1 blockade in vivo.

Commonly Used Antibodies and Proteins with RMP1-30

RMP1-30 is a rat monoclonal antibody that specifically targets murine programmed cell death protein 1 (PD-1, CD279), widely used in immunology and cancer immunotherapy research. In the literature, it is frequently used alongside other anti-PD-1 antibodies and related checkpoint proteins to validate specificity, investigate epitope overlap, or assess functional blockade in experimental systems.

Antibodies Co-Used with RMP1-30

  • 29F.1A12 (also called 1A12): This is another anti-mouse PD-1 monoclonal antibody often used in parallel with RMP1-30 to confirm PD-1 surface expression on live cells, especially in tumor models such as B16-F10 melanoma and primary T cells. Co-staining experiments with both antibodies show nearly complete overlap in positive cell populations, supporting the specificity of both clones for PD-1.
  • RMP1-14: A closely related anti-PD-1 antibody, frequently compared to RMP1-30 for epitope mapping and blocking studies. Epitope blocking assays reveal that RMP1-14 and RMP1-30 can partially block each other’s binding, suggesting they recognize distinct but partially overlapping epitopes on PD-1. However, RMP1-30 can still be used for staining in the presence of RMP1-14, albeit with some reduction in fluorescence intensity.
  • 10F.9G2: This clone also targets PD-1 and is sometimes included in comparative studies evaluating the functional blockade of PD-1 signaling. While not always co-used in the same experiment as RMP1-30, it is part of the same panel of anti-PD-1 antibodies used to dissect PD-1 biology in mice.

Proteins and Target Molecules

  • PD-1 (CD279): The primary target of RMP1-30, PD-1 is a cell surface protein involved in immune checkpoint regulation. RMP1-30 is used to detect and quantify PD-1 expression on immune cells and in tumor models.
  • PD-L1 (Programmed Death-Ligand 1): Although RMP1-30 does not bind PD-L1 directly, PD-L1 is frequently studied in conjunction with PD-1 to understand immune evasion mechanisms in cancer and infectious diseases. Anti-PD-L1 antibodies (such as 10F.9G2 and others) are often used alongside RMP1-30 in co-culture or functional assays to model PD-1/PD-L1 axis blockade.
  • CD28 and CTLA-4: These are related members of the CD28/CTLA-4 family and are sometimes investigated in studies alongside PD-1 to understand broader immune checkpoint modulation. However, RMP1-30 itself is specific for PD-1, not these other proteins.

Functional and Staining Applications

  • Flow Cytometry: RMP1-30 is commonly used in flow cytometry to detect PD-1 on live and dead cells, often in combination with 29F.1A12 to confirm specificity or for multi-parameter analysis.
  • Immunotherapy Experiments: In preclinical immunotherapy studies, RMP1-30 may be used alongside 29F.1A12 or RMP1-14 to assess PD-1 blockade efficacy, especially when different antibody clones are being evaluated for therapeutic potential.
  • Epitope Mapping: Comparative binding and blocking studies using RMP1-30, 29F.1A12, and RMP1-14 help define the epitope landscape of murine PD-1 and inform the design of bispecific or combination therapies.

Summary Table: Key Antibodies and Proteins Used with RMP1-30

Antibody/ProteinTargetCommon Use with RMP1-30Notes
29F.1A12 (1A12)PD-1 (mouse)Co-staining, validation, flow cytometryOverlaps with RMP1-30 in most cells
RMP1-14PD-1 (mouse)Epitope mapping, blocking assaysPartially blocks RMP1-30 binding
10F.9G2PD-1 (mouse)Functional blockade studiesPart of anti-PD-1 antibody panel
PD-L1PD-L1 (mouse)Co-culture, functional assaysNot targeted by RMP1-30, but related
CD28/CTLA-4CD28, CTLA-4Broader checkpoint studiesRelated immune checkpoint proteins

Conclusion

RMP1-30 is most commonly used alongside other anti-PD-1 antibodies such as 29F.1A12 and RMP1-14 for validation, epitope mapping, and functional studies in murine models. PD-L1 and related checkpoint proteins are also frequently investigated in the same experimental systems, though RMP1-30 itself is specific for PD-1. These combinations are critical for dissecting the roles of immune checkpoints in health and disease.

Clone RMP1-30 is a monoclonal antibody widely used to detect and study PD-1 (Programmed cell Death 1) expression, especially in murine models. The key scientific findings from literature citations of RMP1-30 are:

  • Specificity for PD-1 Detection: RMP1-30 reliably binds to surface PD-1 protein on live and dead murine cells—including B16-F10 melanoma cells and T-cells—with no reactivity in PD-1 knockout cells, confirming its high specificity for PD-1.

  • Overlap with Other PD-1 Clones: RMP1-30 and the 29F.1A12 anti-PD-1 clones recognize largely overlapping cell populations. Dual staining experiments show nearly all PD-1 antibody-reactive cells are positive for both clones, reinforcing specificity and reliability in flow cytometric analyses.

  • Culture Conditions Impact Detection: Reactivity of RMP1-30 (and 29F.1A12) to PD-1 on B16-F10 cells is over threefold higher in three-dimensional tumor spheroid cultures compared to standard two-dimensional cultures, indicating detection sensitivity varies with cell context.

  • Non-blocking Functional Property: RMP1-30 does not block the PD-1/PD-L1 interaction. Unlike some anti-PD-1 antibodies (e.g., 1A12), RMP1-30 does not reverse PD-1–mediated T cell inhibition or increase luciferase activity in functional assays, making it suitable as a staining reagent rather than a blocking or agonist antibody.

  • Epitope and Staining Characteristics: RMP1-30 can fully block its own binding but only partially blocks 29F.1A12. Conversely, when 1A12 or RMP1-14 are bound to PD-1, RMP1-30 staining intensity drops by about 25%, suggesting partial epitope overlap but also cooperative binding effects. These properties make RMP1-30 useful for staining PD-1, even in the presence of therapeutic antibodies, with minor reductions in staining signal.

  • Compatibility in Immunotherapy Experiments: Because RMP1-30 does not interfere with PD-1/PD-L1 blockade, it can be used alongside blocking antibodies like 1A12 or RMP1-14 for flow cytometric analysis of PD-1 expression post-treatment.

In summary, RMP1-30 is best used as a PD-1 detection reagent rather than a functional blocking antibody. It is validated for specificity and co-recognition of PD-1 by various antibody clones, and its staining properties make it a standard tool in cancer immunology and immunotherapy research.

Dosing regimens of clone RMP1-30 (rat anti-mouse PD-1) are not standardized and can vary considerably across different mouse models depending on the research application. RMP1-30 is primarily used for flow cytometry and PD-1 detection rather than in vivo functional blockade, and published dosing regimens are typically not as well established as for anti-PD-1 clones like 29F.1A12 or RMP1-14. Here are the key points based on available research and manufacturer data:

  • Flow Cytometry Applications:
    For flow cytometry, the recommended use is a dilution of 1:100 to 1:200, using 10??L of the working dilution to label 1 million cells in 100??L of buffer. No specific reference to administration in live animals for therapy or depletion is provided in manufacturer data.

  • In Vivo Functional Use:
    Unlike clones such as 29F.1A12 or RMP1-14, which are commonly used for in vivo PD-1 blockade at doses of 200–500 ?g per mouse via intraperitoneal injection every 3–4 days in tumor or infection models, there is limited evidence that RMP1-30 is routinely used for such blockade studies.

    Existing publications primarily describe RMP1-30 for detecting PD-1 expression in situ or ex vivo, not for manipulating PD-1 signaling in live mice. When used for flow cytometry in tumor models (e.g., B16-F10 melanoma), the focus is on surface detection rather than immunomodulation.

  • Comparison with Other Clones:
    | Clone | Typical Use | Common Dose (in vivo) | Route/Regimen ||---------------|------------------------|----------------------------------|---------------------------------------|| RMP1-30 | PD-1 detection (FACS) | 1:100–1:200 dilution (ex vivo) | NA for in vivo functional blockade || 29F.1A12 | PD-1 blockade (in vivo)| 100–200??g per mouse (5?mg/kg) | i.p. every 3–4 days (usually 3 doses) || RMP1-14 | PD-1 blockade (in vivo)| 200–500??g per mouse | i.p. every 3–4 days |

  • Alternate Models and Regimens:
    If RMP1-30 were to be used in vivo for checkpoint blockade (not common), it would be reasonable—by analogy to similar anti-PD-1 clones—to begin with 200–500??g per mouse i.p. every 3–4 days, with adjustment based on pilot outcomes. However, this approach should be validated, as RMP1-30 may not block PD-1/PD-L1 binding as effectively as other clones.

  • Model and Disease Context:
    Dosing may also vary depending on tumor type (e.g., B16 melanoma vs. MC38 colon carcinoma) and whether the model requires chronic vs. acute dosing.

Summary:
RMP1-30 is primarily a detection antibody, with dosing regimens (1:100–1:200 dilutions) established for flow cytometry. Its use and dosing for in vivo functional blockade are not standard and are less documented compared to other anti-PD-1 clones, which are injected at 100–500??g per mouse every 3–4 days in immune-oncology models.

References & Citations

1. Matsumoto K, Inoue H, Nakano T, et al. J Immunol. 172(4):2530-2541. 2004.
2. Zhao Y, Harrison DL, Song Y, et al. Cell Rep. 24(2):379-390.e6. 2018.
3. Raimondi G, Shufesky WJ, Tokita D, et al. J Immunol. 176(5):2808-2816. 2006.
4. Ding ZC, Habtetsion T, Cao Y, et al. Sci Rep. 7(1):12168. 2017.
5. Chatterjee S, Daenthanasanmak A, Chakraborty P, et al. Cell Metab. 27(1):85-100.e8. 2018.
6. Snell LM, MacLeod BL, Law JC, et al. Immunity. 49(4):678-694.e5. 2018.
7. Bradley CP, Teng F, Felix KM, et al. Cell Host Microbe. 22(5):697-704.e4. 2017.
8. Uchil PD, Pi R, Haugh KA, et al. Cell Host Microbe. 25(1):87-100.e10. 2019.
9. Timilshina M, You Z, Lacher SM, et al. Cell Rep. 27(10):2948-2961.e7. 2019.
10. Chow MT, Ozga AJ, Servis RL, et al. Immunity. 50(6):1498-1512.e5. 2019.
11. St Clair JB, Detanico T, Aviszus K, et al. PLoS One.12(1):e0170556. 2017.
12. Liu QZ, Ma WT, Yang JB, et al. Front Immunol. 9:1090. 2018.
13. Vanderleyden I, Fra-Bido SC, Innocentin S, et al. Cell Rep. 30(3): 611–619.e4. 2020.
14. Bally AP, Tang Y, Lee JT, et al. J Immunol. 198(1):205–217. 2017.
15. Quatrini L, Wieduwild E, Escaliere B, et al. Nat Immunol. 19(9):954-962. 2018.
16. Shimizu K, Sugiura D, Okazaki IM, et al. Mol Cell. 77(5):937-950.e6. 2020.
17. Karnowski A, Chevrier S, Belz GT, et al. J Exp Med. 209(11):2049-2064. 2012.
18. Park HJ, Kusnadi A, Lee EJ, et al. Cell Immunol. 278(1-2):76-83. 2012.
19. Huang JR, Tsai YC, Chang YJ, et al. J Immunol. 192(4):1972-1981. 2014.
20. Park SJ, Namkoong H, Doh J, et al. J Leukoc Biol. 96(5):939. 2014.
21. Puleston DJ, Zhang H, Powell TJ, et al. Elife. 3:e03706. 2014.
22. Lu X, Ding ZC, Cao Y, et al. J Immunol. 194(4):2011-2021. 2015.
23. Bally AP, Lu P, Tang Y, et al. J Immunol. 194(9):4545-4554. 2015.
24. Zeng, W., Liu, Z., Zhang, S. et al. Sci Rep. 6:36560. 2016.
25. Zhuang Z, Lai X, Sun J, et al. J Exp Med. 218(4):e20202187. 2021.
26. Mitchell JE, Lund MM, Starmer J, et al. Cell Rep. 35(2):108966. 2021.
27. Christian LS, Wang L, Lim B, et al. Cell Rep. 35(6):109118. 2021.
28. Cui J, Xu H, Yu J, Ran S, Zhang X, et al. Sci Immunol. 9(94):eadh0085. 2024.
Depletion
Flow Cytometry
in vivo Protocol
